-10kVA
-15kVA
-20kVA

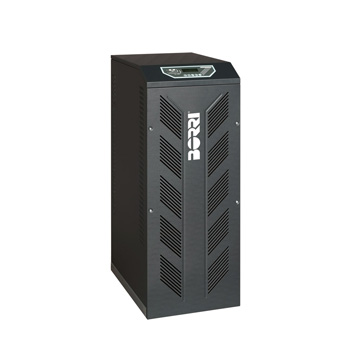

The B8000 combines low input THD with almost unity power factor, all these features in a very small box!
- If the THDi (<3%) is low and the power factor is close to unit (0.99) then this will enhance compatibility with the mains input and generator
- The efficiency and overall compactness of the B8000 reduces the overall cost of ownership
- Double conversion topology offers protection for every application
- Advanced technology
- Accurate Battery Management
- Parallel systems for redundancy or capacity increasing
- Easy installation, operation and maintenance.
Technical data :
| UPS Topology | On-Line Double Conversion |
| Output Power (CosΦ 0,8) – KVA | 10 / 15 / 20 |
| Output Power (CosΦ 1) – kW | 8 / 12 / 16 |
| Efficiency (AC ÷ AC) – % (ECO mode) | >98 |
| Efficiency (AC ÷ AC) – %) | >92 |
| EMC compatibility | According to “IEC EN 62040-2” (CE label) |
| Nominal Imput Voltage – Vac | 380-400-415 (+10% -20%) |
| Imput Power Factor | >0.99 |
| Harmonic current distorsion rejected in to the mains | <3% |
| Inverter Bridge | IGBT (transformerless) |
| Nominal Output Voltage – Vac | 220-230-240 (Selectable) |
| Output Frequency (Hz) | 50 – 60 |
| Overload Capability | 125% for 10 min |
| Overload Capability | 200% for 100 ms |
| Output Harmonic Distorsion With Linear Load | <2% |
| Output Harmonic Distorsion With Non Linear Load (Crest Factor 3:1) | <5% |
| Output Harmonic Distorsion IEC 62040-3 | Completely complying |
| Crest Factor (Non Linear Load) | 3:1 |
| Input | Threephase |
| Output | Singlephase |
| Autonomy | 0 / 10 / 20 / 30 / 60 minutes |
